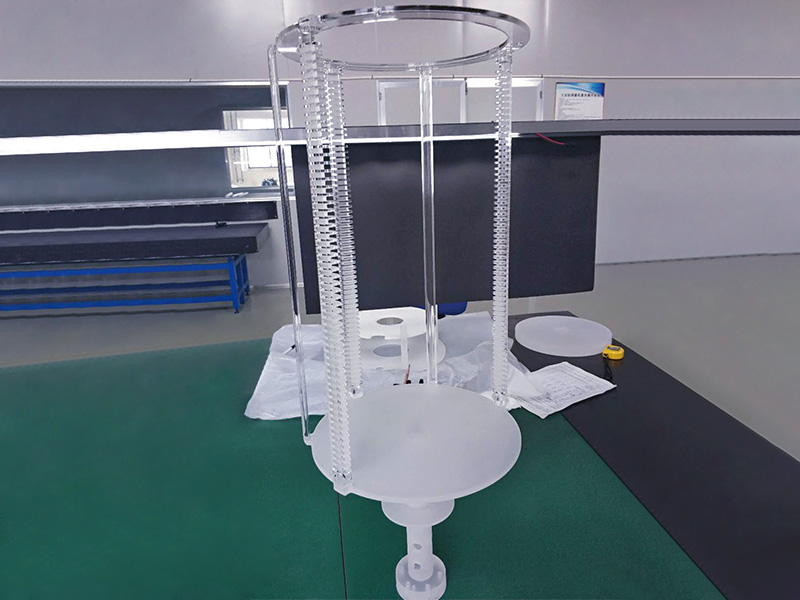

Quartz wafer boat is a specialized tool used in the semiconductor manufacturing process, mainly for carrying and transporting silicon wafers in high-temperature environments. Due to its excellent high-temperature resistance and chemical stability, quartz wafer boats are widely used in many high-precision and high-tech process requirements. It is usually made of high-purity quartz material (SiO2), which not only has good thermal stability at high temperatures but also maintains chemical stability, preventing reactive gases or chemicals from contaminating the wafer.
In the process of semiconductor manufacturing, especially in photolithography, thin film deposition, etching and other processes, wafers need to be processed at high temperatures and often require reactions in special atmospheres. During this process, the wafer boat, as a carrier, can stably support and transport the wafers, ensuring that the wafer surface is not contaminated and minimizing damage to the greatest extent.
Application
1.Semiconductor manufacturing
The semiconductor industry is the main application field of quartz wafer boats. Wafer boats are often used in the manufacturing of integrated circuits (IC), including thin film deposition (such as chemical vapor deposition and physical vapor deposition) as well as high-temperature processes like oxidation and annealing. During these processes, the wafer boat is responsible for uniformly transporting the wafers in the reactor and ensuring that they are heated evenly throughout the process.
2. Chemical vapor deposition (CVD)
In the CVD process, quartz wafer boats can stably transport wafers at high temperatures to ensure the uniformity of deposits and reduce chemical contamination. Due to the material properties of the wafer boat, it can effectively avoid the interference of chemical reactions during the CVD process, thereby ensuring the quality of the wafers.
3. Annealing process
Annealing is a common operation in the semiconductor manufacturing process, which involves heating the wafer to release internal stress or repair certain defects. Quartz wafer boats are used in this process to carry wafers and ensure that they receive uniform heat treatment in the furnace.
4. Crystal growth
In the production of some advanced materials, quartz wafer boats can also be used in crystal growth processes, especially in the growth of silicon single crystals and other semiconductor materials. In these applications, the high-temperature resistance and chemical stability of quartz boats are of vital importance.
The design of quartz wafer boats needs to meet multiple requirements:
- High-temperature stability: The melting point of quartz material is above 1600°C, which enables it to maintain physical and chemical stability in high-temperature environments.
- Thermal shock resistance: Quartz has excellent thermal shock resistance, can quickly adapt to temperature changes, and is not prone to cracking.
- l Pollution-free: Quartz is a very pure material that can prevent contamination of the wafer surface. In the semiconductor manufacturing process, any minor contamination can lead to product defects, so the selection of quartz materials is of vital importance.
How to choose Quartz Wafer Boat?
1. Number and size of wafers
Different production processes have different requirements for wafer boats. Generally, the size of the wafer boat, the number of slots, etc. need to be determined based on the size and quantity of the wafers to be processed. Too many wafers may affect heat distribution and uniformity, so precise consideration is needed during design and selection.
2. High-purity quartz material
Due to the extremely high cleanliness requirements in the semiconductor manufacturing process, the selection of high-purity quartz materials is of vital importance. Quartz of lower purity may contaminate the wafers, leading to a decline in product quality.
3. Thermal shock resistance
In some processes, wafer boats need to frequently switch between different temperature environments, so thermal shock resistance is of vital importance. Quartz material itself has good thermal shock resistance, but the thermal shock resistance of quartz wafer boats produced by different manufacturers may vary.
4. Corrosion resistance and chemical stability
The chemical reagents used in semiconductor manufacturing are often highly corrosive, so quartz wafer boats need to have high chemical stability to avoid reactions with these chemical substances.
5. Cost and Lifespan
As quartz wafer carriers operate in high-temperature environments, they often experience physical wear and tear. Therefore, their service life is also a factor that needs to be considered. Choosing a cost-effective wafer boat can effectively reduce long-term operating costs.
How to Maintain Quartz Wafer Boat?
1. Clean
During the usage process, quartz wafer boats may accumulate some chemical substances or fine particles, which may affect the quality of the wafers. Therefore, it is very important to clean the wafer boat regularly. Common cleaning methods include using ultrasonic cleaners, acid washing, and decontamination solutions, etc.
2. Check for cracks and damages
Due to the fact that quartz wafer boats are subject to extremely high temperatures and mechanical pressures, cracks or wear may occur after long-term use. Regularly inspect the structural integrity of the wafer boat and replace damaged components in a timely manner to avoid problems during the production process.
3. Prevent overheating
Although quartz has a relatively good thermal shock resistance, it may still be damaged under some extreme conditions. Therefore, when operating, it is necessary to pay attention to avoiding excessively high temperatures and thermal shock.
