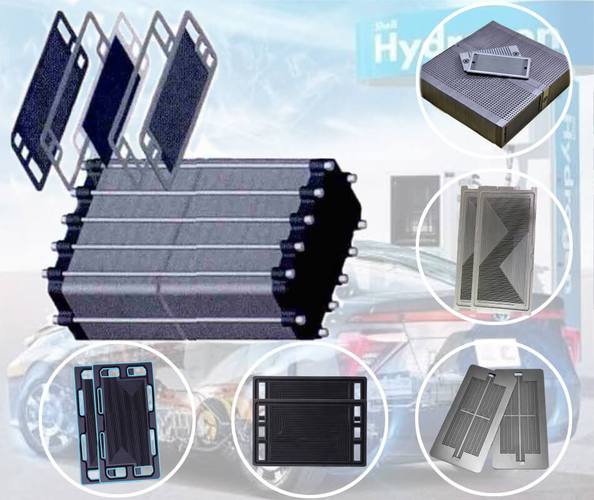

The bipolar plate, also known as the collector plate, is one of the important components of a fuel cell. It has the following functions and properties: separating fuel from oxidant and preventing gas from passing through; It collects and conducts current with high electrical conductivity. The designed and processed flow channel can evenly distribute the gas to the reaction layer of the electrode for electrode reaction. It can dissipate heat and maintain a uniform temperature field of the battery. Corrosion-resistant Resistant to impact and vibration; Thin thickness; Light in weight; At the same time, it has low cost, is easy to be mechanically processed, and is suitable for mass manufacturing, etc.

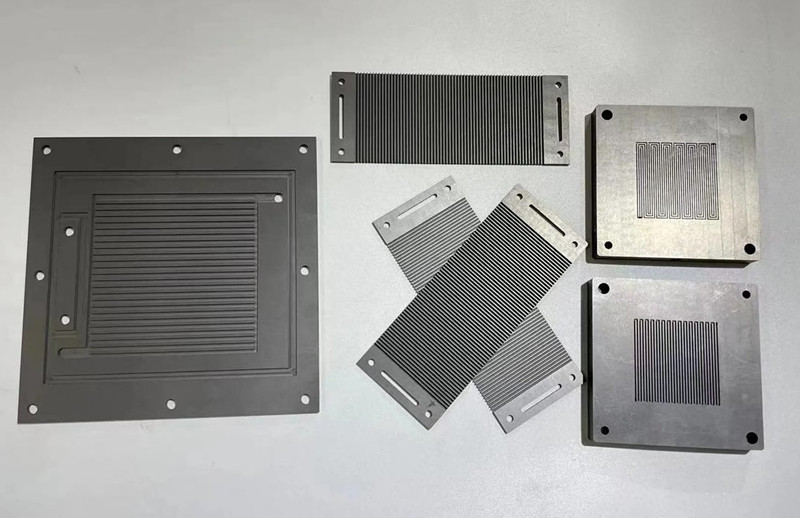

Graphite bipolar plates are one of the products made of this material. They have a wide range of applications and high performance, and can be used as electrode materials in electrochemical batteries. They are composed of graphite and various additives. Its main function is to provide the reaction surface required for battery reactions, and it also has good electrical conductivity, stability and corrosion resistance. It is made of graphite material and is bipolar, which can be used as an electrode in electrochemical reactions.
Material Characteristics
1.Excellent electrical conductivity：It can effectively conduct current in fuel cells and improve the working efficiency of the battery
2.Corrosion resistance：It has a strong anti-corrosion ability, especially in acidic or alkaline environments
3.Good thermal conductivity：It can effectively manage the heat of fuel cells and maintain the temperature balance of the system
4.Lightweight and high strength：Compared with other metal materials, it is lighter, which has a significant advantage when designing compact fuel cells
5.Workability：Graphite has strong processability and can be made into bipolar plates of different shapes through mold forming, cutting and engraving, etc., to meet the requirements of different types of fuel cells
Application
1.Graphite bipolar plates can be used in battery manufacturing. Graphite bipolar plates can be used as either the positive or negative electrode of a battery. In a battery, the function of graphite bipolar plates is to store electric charges to generate electrical energy. They can also serve as electron transport channels in electrochemical reactions, transferring electrons to the electrolyte through their electrical properties, thereby enabling battery reactions. Graphite bipolar plates can improve the performance of batteries by altering their porosity, specific surface area and electrical conductivity, and can be customized according to specific application scenarios.
2.Graphite bipolar plates can also be used for hydrogen production through water electrolysis. Hydrogen production through electrolysis of water is a process that decomposes water into hydrogen and oxygen, which requires the use of electrical energy. During this process, graphite bipolar plates can act as electrodes to promote the electrolytic reaction of water, thereby generating hydrogen. This method can be used to prepare hydrogen fuel and is an environmentally friendly and sustainable way of energy production.
3. Graphite bipolar plates can also be used in electrochemical sensors. An electrochemical sensor is a device that uses electrochemical reactions to detect chemical substances. In electrochemical sensors, graphite bipolar plates can serve as electrodes, and the concentration of chemical substances can be detected by measuring the changes in electrode potential. This method can be applied in fields such as environmental monitoring and medical diagnosis.
4. Graphite bipolar plates can also be used for electrochemical processing. Electrochemical machining is a method of processing materials that utilizes electrochemical reactions. In electrochemical processing, graphite bipolar plates can be used as electrodes, and the processing process can be controlled by regulating the electrode potential. This method can be used to prepare micro-devices, nanomaterials, etc.
In addition to the above advantages, graphite bipolar plates can also separate fuel from oxidant and prevent gas from passing through. It collects and conducts current with high electrical conductivity. The designed and processed flow channel can evenly distribute the gas to the reaction layer of the electrode for electrode reaction. It can dissipate heat and maintain a uniform temperature field of the battery. Corrosion-resistant, impact-resistant and vibration-resistant, with thin thickness, light weight, low cost, easy to machine and suitable for mass manufacturing, etc. Therefore, graphite bipolar plates are an important industrial material and also of great significance for electrochemical applications in the field of hydrogen energy. The future research focus on graphite bipolar plates will be to develop a low-cost manufacturing method for graphite bipolar plates.
VET China graphite bipolar plates are made of high-purity graphite matrix and filled with high-performance resin for graphite micropores. By optimizing the manufacturing process, reducing production costs and improving material performance, graphite bipolar plates are expected to become an important driving force for supporting sustainable energy development.
